Focusing on critical power generation demands

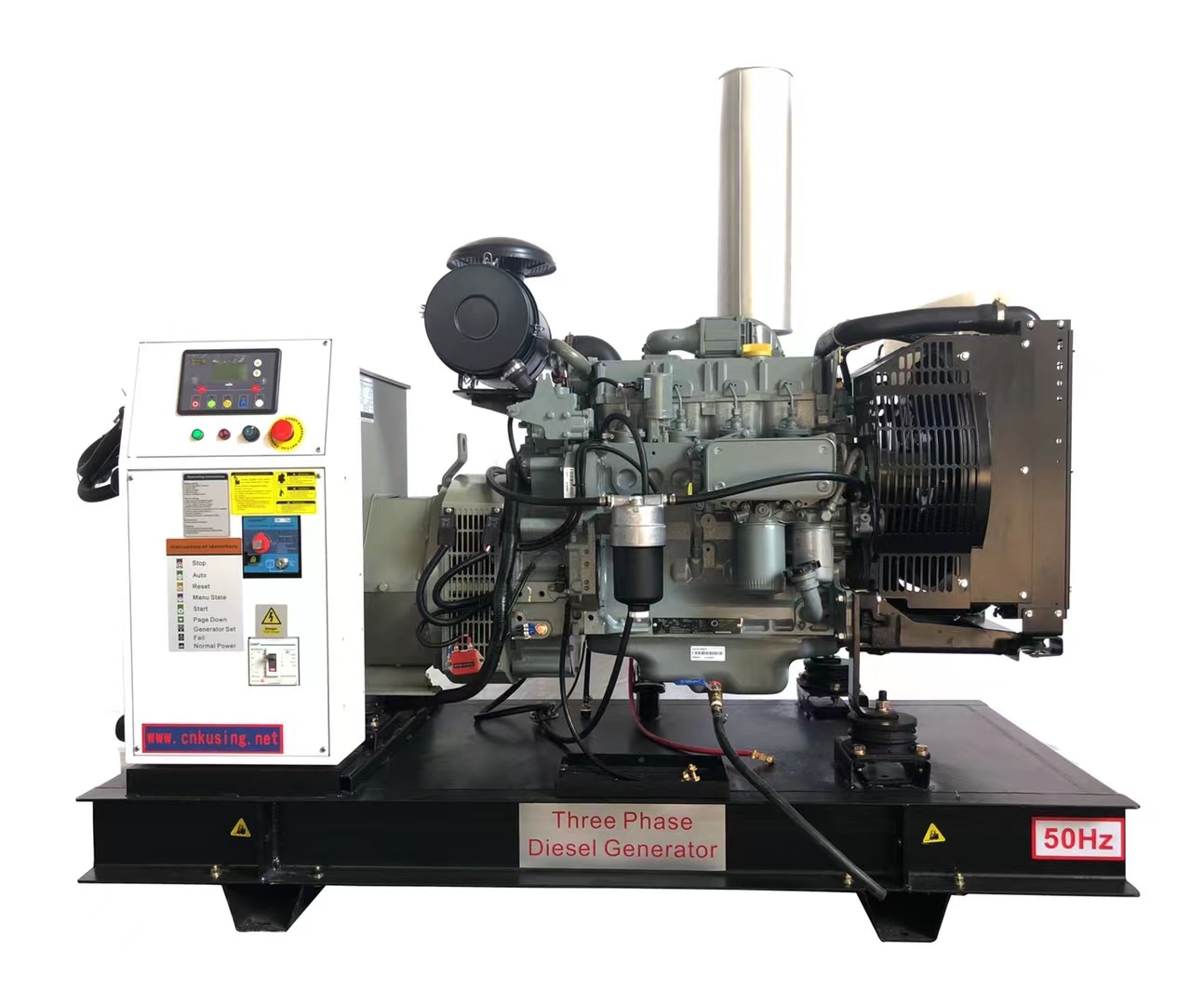

200kW Deutz Engine Powered Diesel Generator
Technical Parameters
| Generator set | Type | Open | Open with ATS | Super Silent | Super Silent with ATS |
| Genset Model | DK32000 | DK32000A | DK32000SS | DK32000SSA | |
| Prime Power Rating | 250KVA/200KW | ||||
| Standby Power Rating | 275KVA/220KW | ||||
| Size(mm) | 2480*950*1630 | 3800*1300*1900 | |||
| Weight(KG) | 2150 | 3380 | |||
| Internal protection | IP22 | ||||
| Rate current(A) | 361 | ||||
| Specific Fuel Consumption(g/kW·h)@100% Load | ≤195 | ||||
| Noise at 7 meters away(dB) | N/A | 75dB | |||
| Engine | Model | TCD8.0(TCD2013-4L) | |||
| NO. of Cylinder | 6 | ||||
| Cylinder Type | L | ||||
| RPM | 1500 | ||||
| Bore (mm) | 110 | ||||
| Stroke(mm) | 136 | ||||
| Speed Governor | electronic | ||||
| Start system(VDC) | 24 | ||||
| Lub Oil Specification | 15W40 | ||||
| Displacement(Ltrs) | 7.8 | ||||
| Air inspiration | turbo | ||||
| Phase | 3 | ||||
| Alternator | Brand | KUSING | |||
| Model | S274G200E | ||||
| 3 Phase Voltage(1 Phase) Volts | 380-415(220-240) | ||||
| RPM/Frequency | 1500rpm/50hz | ||||
| Power Factor(%) | 0.8(lagging) | ||||
| Voltage Tolerance(+/- %) | 1 | ||||
| Insulation Class | H | ||||
| Control Panel | Brand | KUSING | |||
| Model | AD6132 | ||||
| Fuel Tank | Capacity(Ltrs) | SUPPORT TO RUN 8 TO 10 HOURS | |||
DEUTZ was established in 1864 by N. A. Otto & Cie. in Germany and is the long-standing independent engine manufacturer with advanced technology. Its diesel engine has apparent power ranges between 15kVA to 800kVa.
